VintageWood: Wood Series

VintageWood

Wood Series

Achieve the Refined Look of Wood
Add Warmth to Cool Materials Like Glass, Metal and Block Panels
Ideal for Use in Modern and Vintage Designs

Features

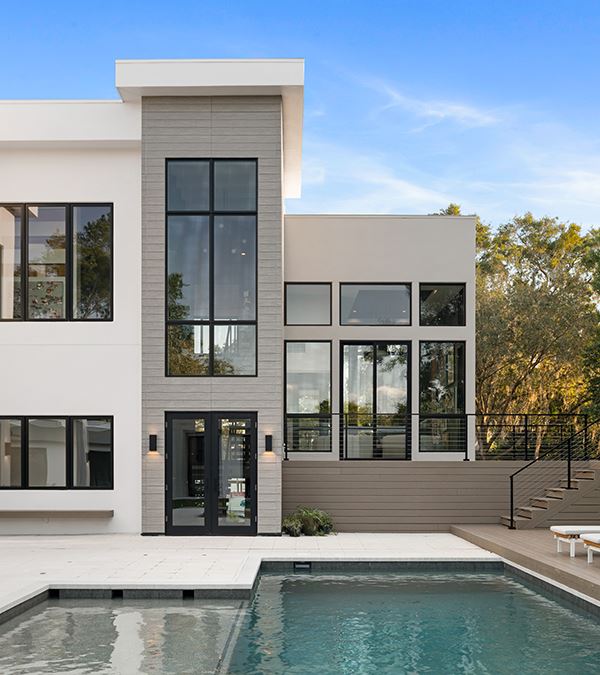

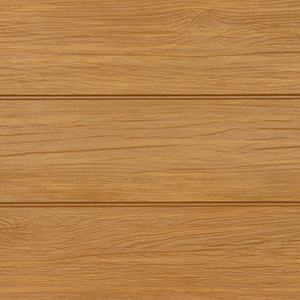

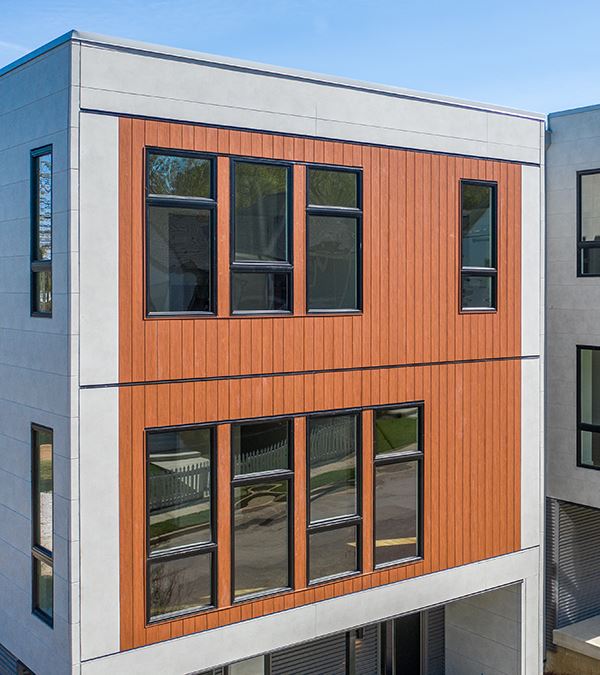

Available in Bark, Redwood, Cedar, Spruce and Ash Finishes
Versatile Corner Options

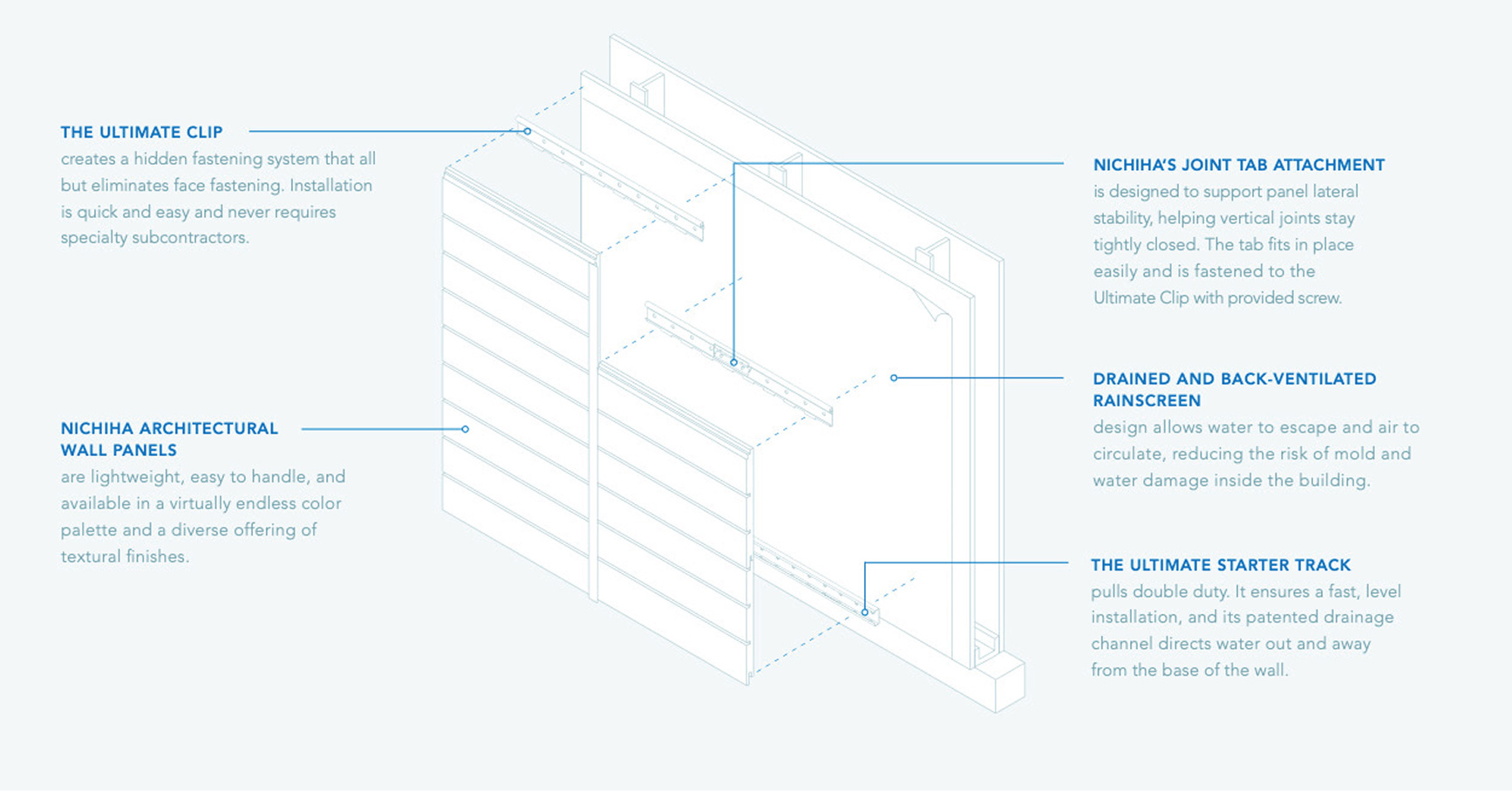

Built-in Rainscreen
Approved for Soffit & Angled Wall Installation

Specifications

AWP 1818

Dimensions (in.)

17 7/8 H x 71 9/16 L

Dimensions (actual mm)

455 H x 1818 L

Thickness (in.)

5/8

Thickness (actual mm)

Weight (lbs. per panel)

34.8

Weight (lbs. per sq. ft.)

3.9

Exposed Coverage (sq. ft. per panel)

8.88

Packaging (pieces per pack)

2 [17.76 sq. ft.]

Panel Orientation

Horizontal

AWP 3030

Dimensions (in.)

17 7/8 H x 119 5/16 L

Dimensions (actual mm)

455 H x 3030 L

Thickness (in.)

5/8

Thickness (actual mm)

Weight (lbs. per panel)

57.3

Weight (lbs. per sq. ft.)

3.8

Exposed Coverage (sq. ft. per panel)

14.81

Packaging (pieces per pack)

2 [29.62 SQ. FT]

Panel Orientation

Horizontal or Vertical

Product Support

Case Studies

Design Review Guide

Download BIM/Revit (1818)

Download BIM/Revit (3030)

Install Documents: Horizontal Vertical

Install Videos

Product Catalogs

Wood Comparison Chart

CAD Details

Product Specs
