Ribbed

Dimension Series
  • Add Depth and Color to Your Designs

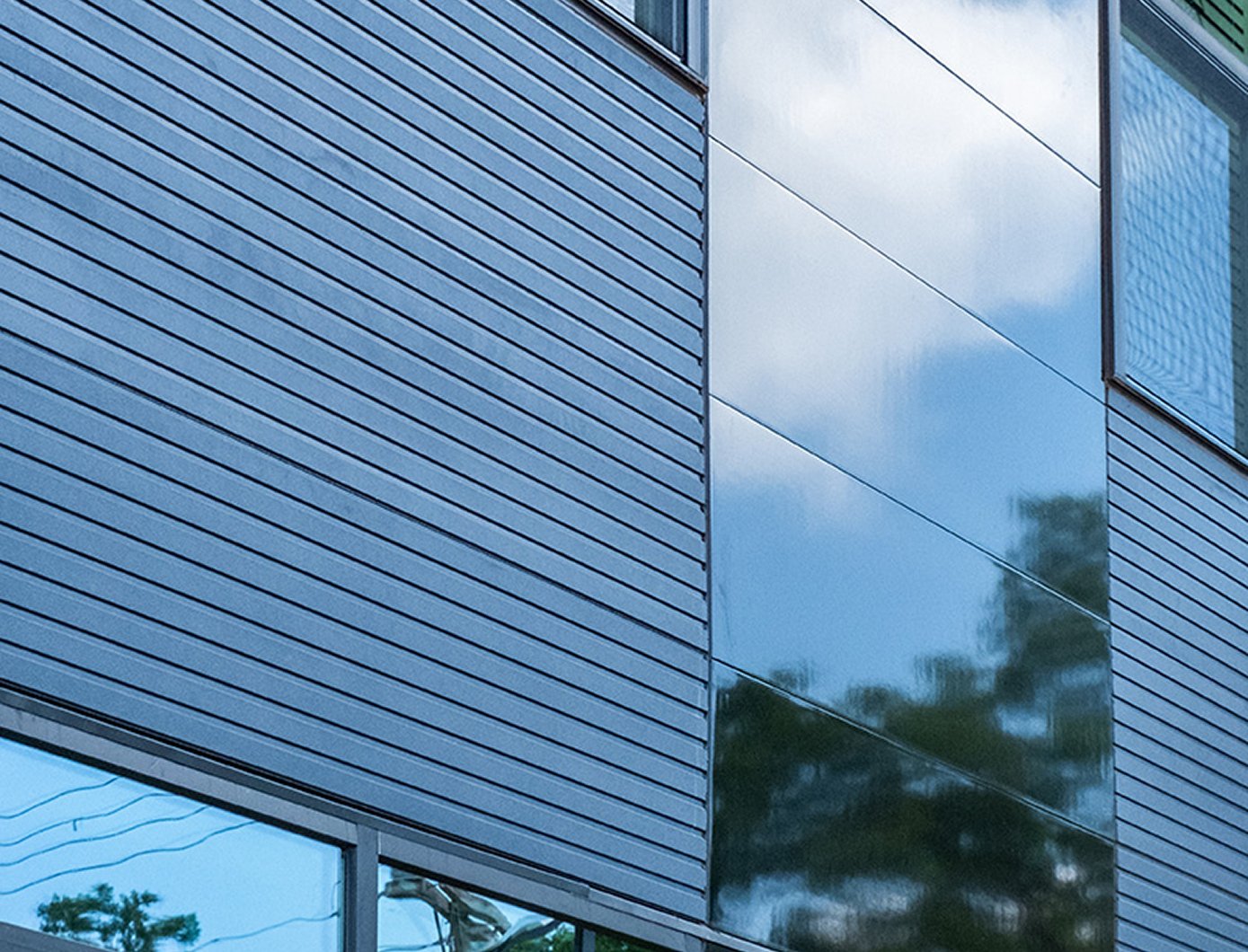

  • Ribbed Texture Complements Smooth Surfaces Like Glass or Metal
  • Sleek Recessed Reveals and Striking Shadow Lines
Features
  • Available in Gunsmoke or Mother of Pearl. Also available in  Custom Color.
  • Versatile Corner Options
  • Backed by Nichiha’s Advanced Clip System and Built-in Rainscreen
Specifications
AWP 3030
Dimensions (in.)
17 7/8 H x 119 5/16 L
Dimensions (actual mm)
455 H x 3030 L
Thickness (in.)
5/8
Thickness (actual mm)
16
Weight (lbs. per panel)
57.3
Weight (lbs. per sq. ft.)
3.8
Exposed Coverage (sq. ft. per panel)
14.81
Packaging (piece per pack)
2 [29.62 SQ. FT.]
Panel Orientation
Horizontal or Vertical
Custom Color Available
Yes
Note
9 Ribs Per Panel
