A full wall section of Sierra Shake or Savannah Smooth lap siding boards terminating under a soffit.
A section detail of KuraStone (LedgeStone and StackedStone) transitioning to vertical AWP at a horizontal joint with basic stud wall framing and wood sheathing.

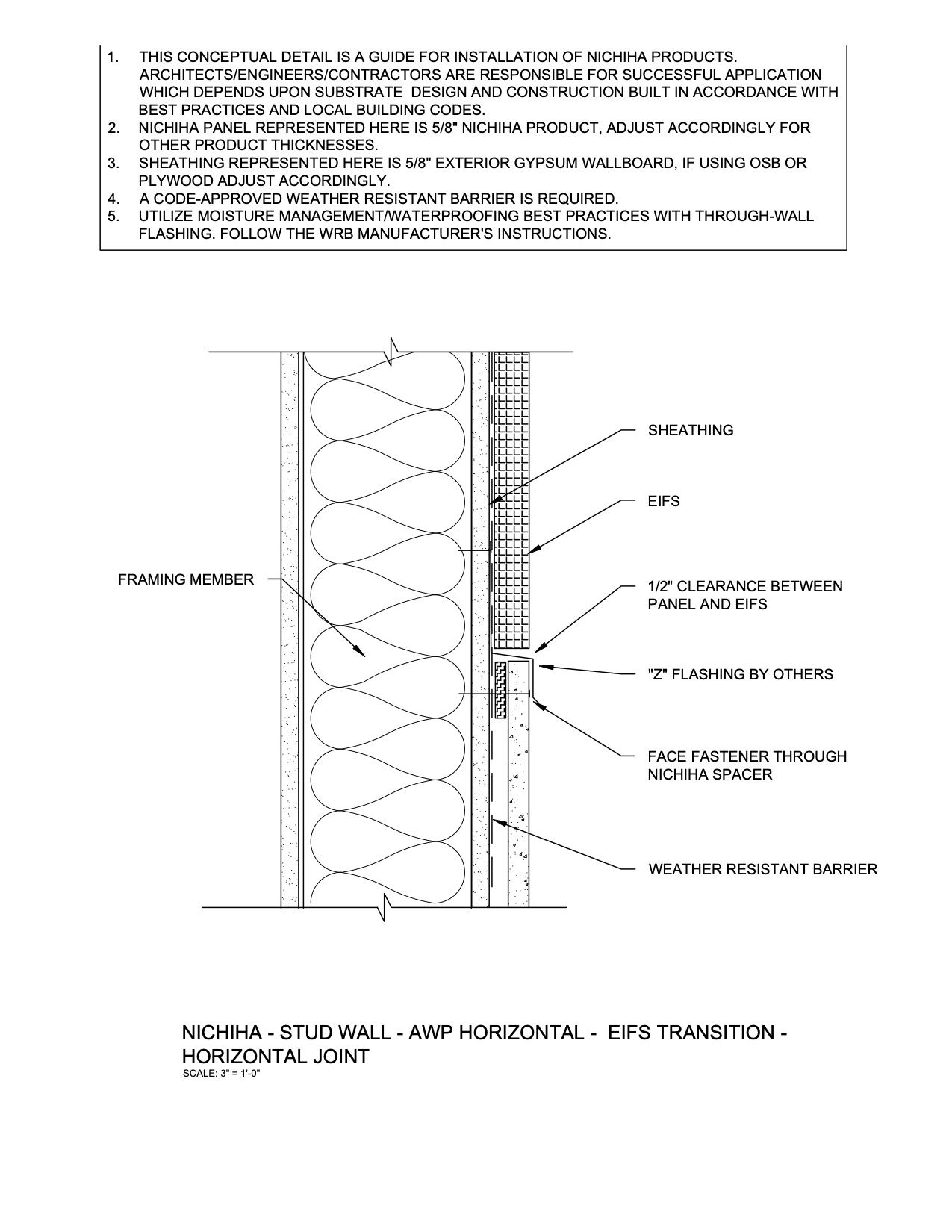

A section view of horizontal Architectural Wall Panel (AWP) over stud framing with an inch or less continuous insulation at a horizontal transition joint to EIFS above.
A plan view of horizontal Architectural Wall Panel (AWP1818) over stud framing with an inch or less continuous insulation at typical a vertical shiplap joint.

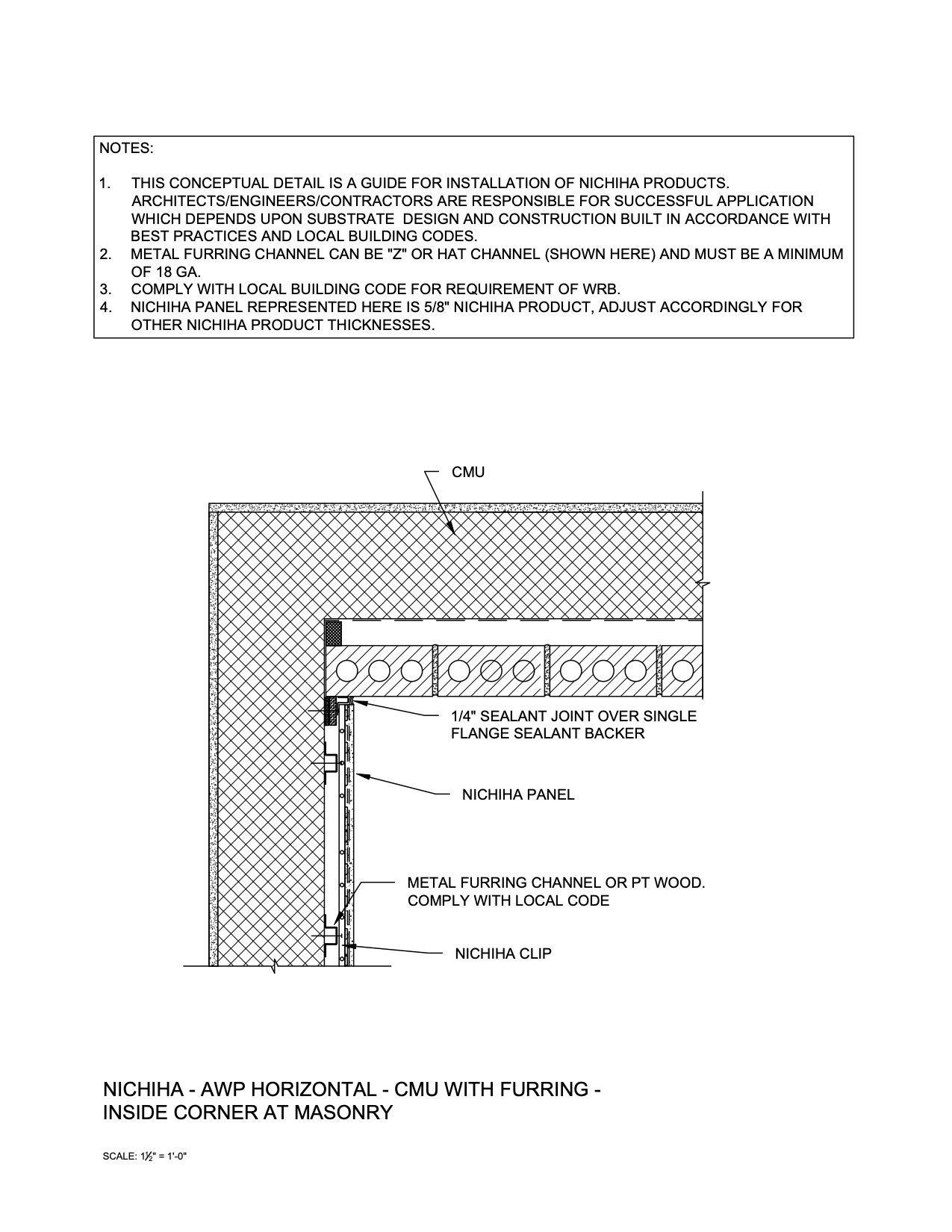

A wall section of horizontal Architectural Wall Panel (AWP) over CMU with furring, Ultimate Clips, and Single Flange Sealant Backer at an inside corner with brick/masonry.
A plan view of horizontal Architectural Wall Panel (AWP) over generic framing with an inch or less continuous insulation at non-90-degree corners. This detail is appropriate for radius-like segmented, flat walls.

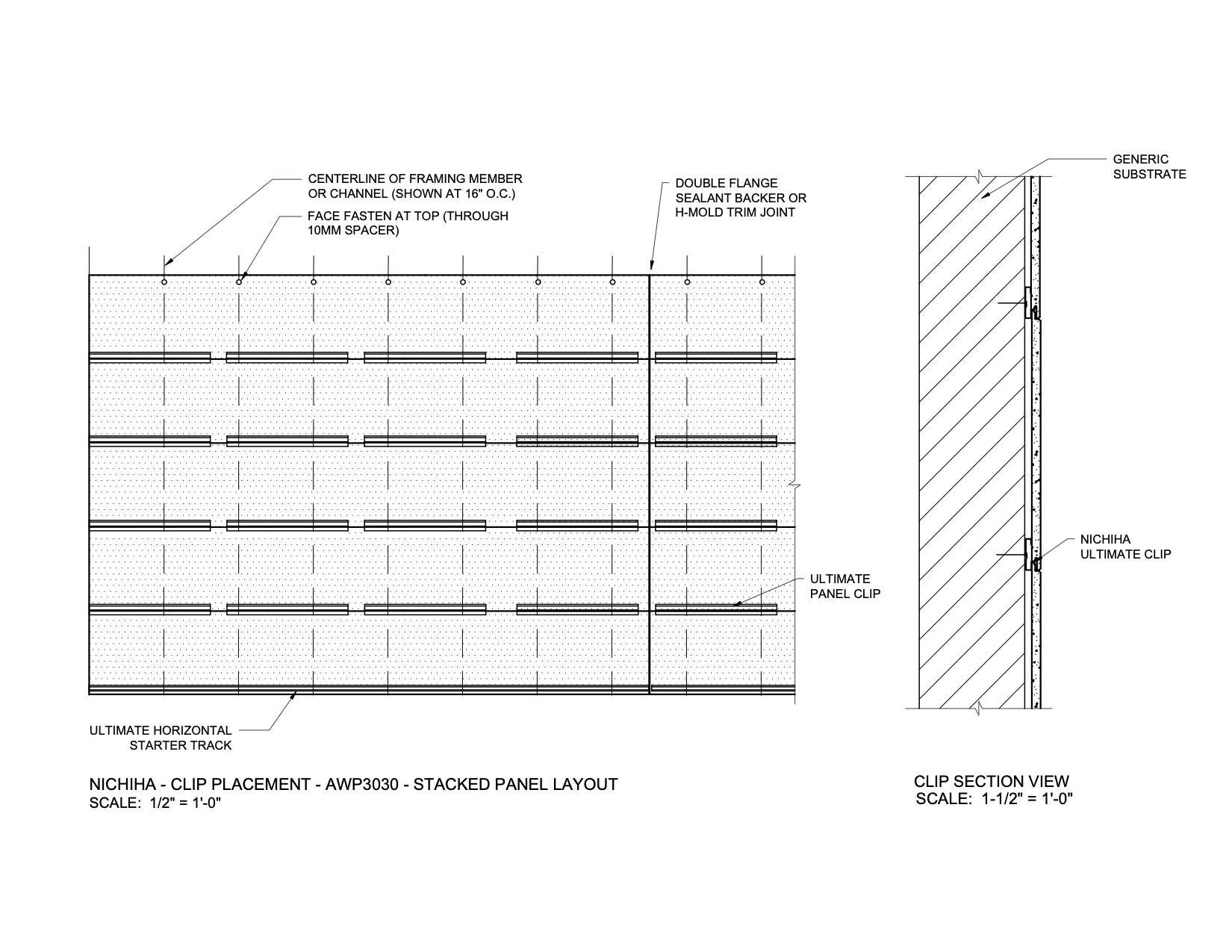

An elevation view depicting the Stacked Bond AWP 3030 and Ultimate Clip layout.
An elevation view depicting AWP 3030 and Ultimate Clip layout in a Vertical application.
A section view of horizontal Architectural Wall Panel (AWP) over stud framing with an inch or less continuous insulation at an overhang transition with AWP as Soffit. Starter Track (FA700) is used with soffit panels.

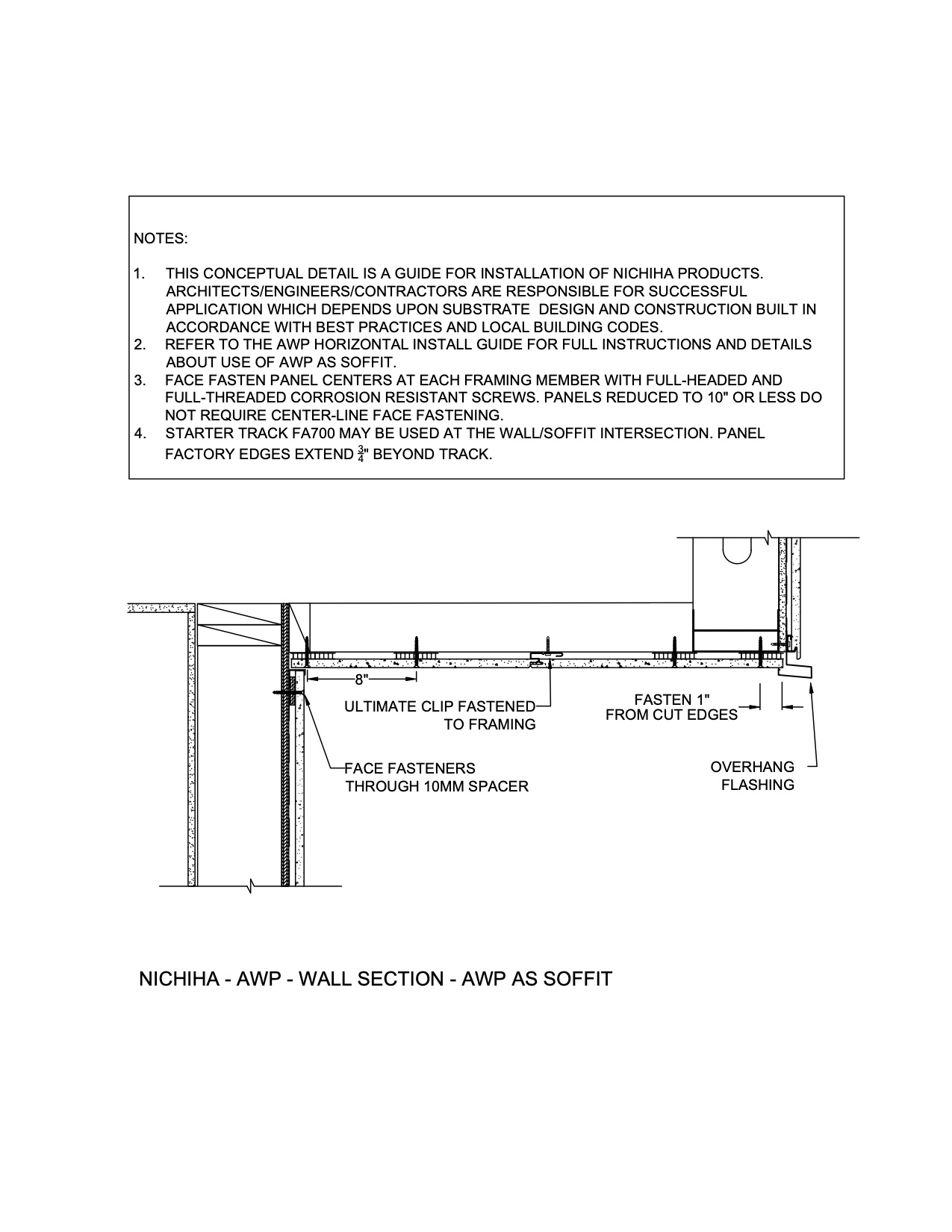

A section view of horizontal Architectural Wall Panels (AWP) over stud framing with an inch or less continuous insulation at an overhang transition with AWP as Soffit.

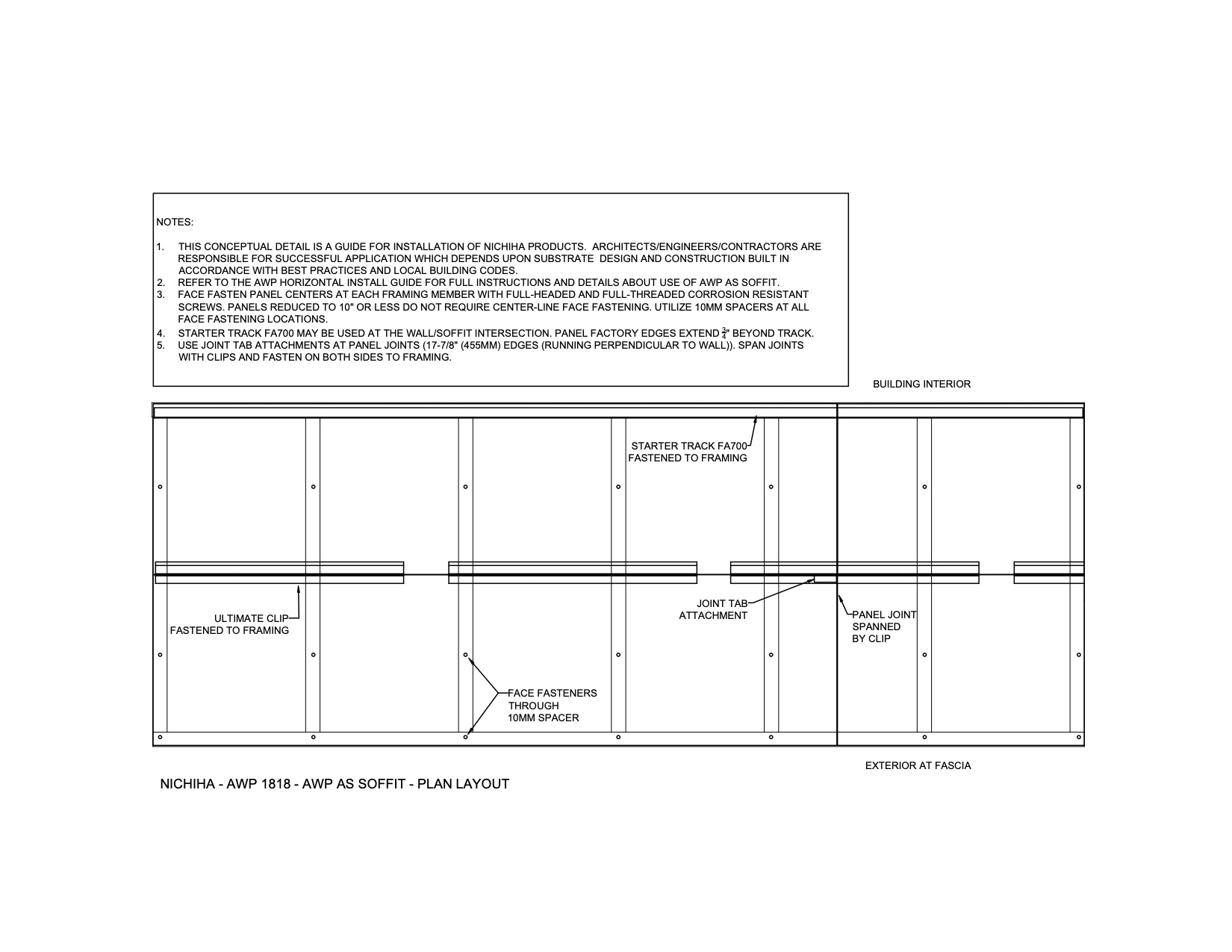

A plan view depicting AWP 1818 and Ultimate Clip layout for Soffit applications of AWP.

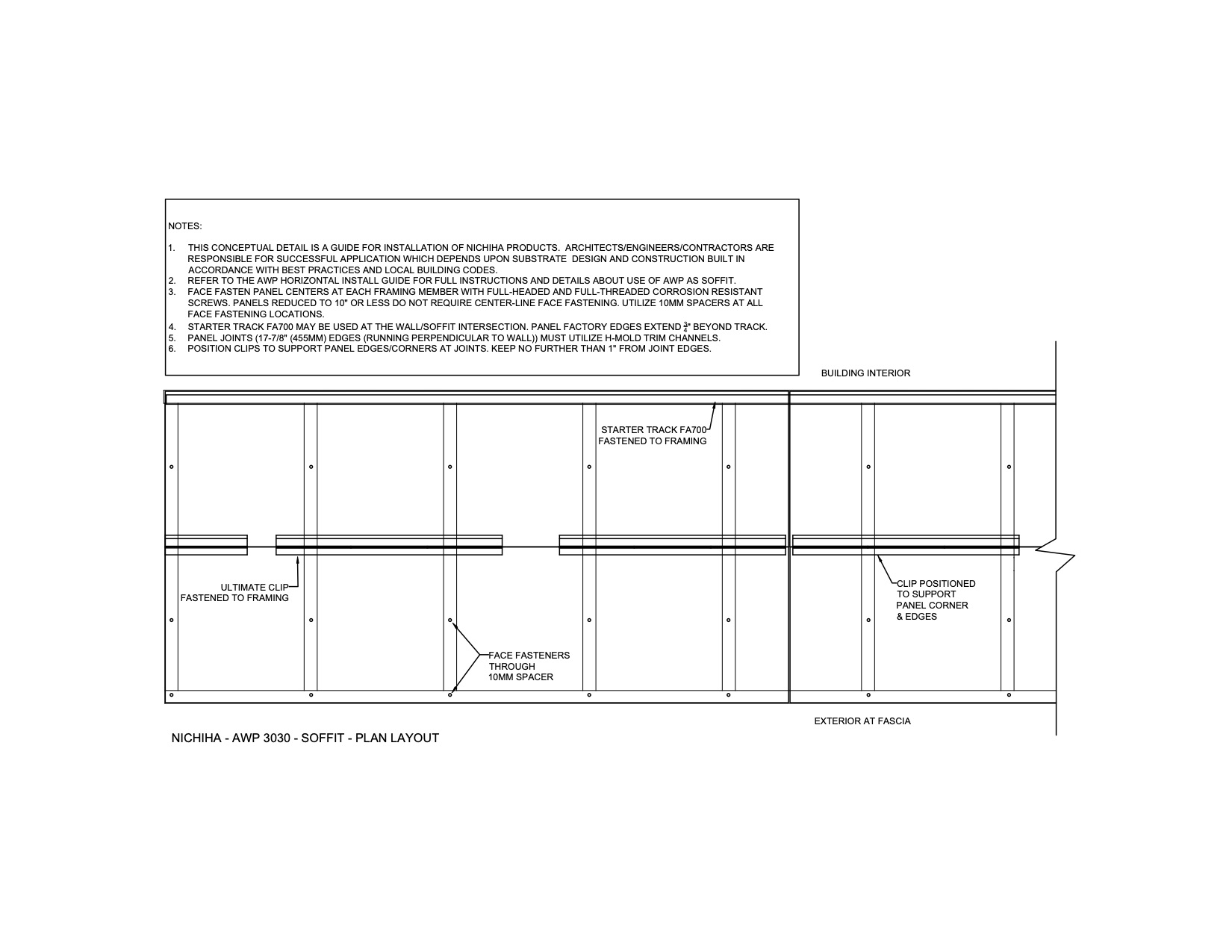

A plan view depicting AWP 3030 and Ultimate Clip layout for Soffit applications of AWP.
A section view of horizontal Architectural Wall Panels (AWP) over stud framing with an inch or less continuous insulation at a transition to AWP on an angled wall.
A full wall section of vertical Architectural Wall Panels (AWP) over CMU with furring, Starter Track, Ultimate Clips with termination at a parapet.

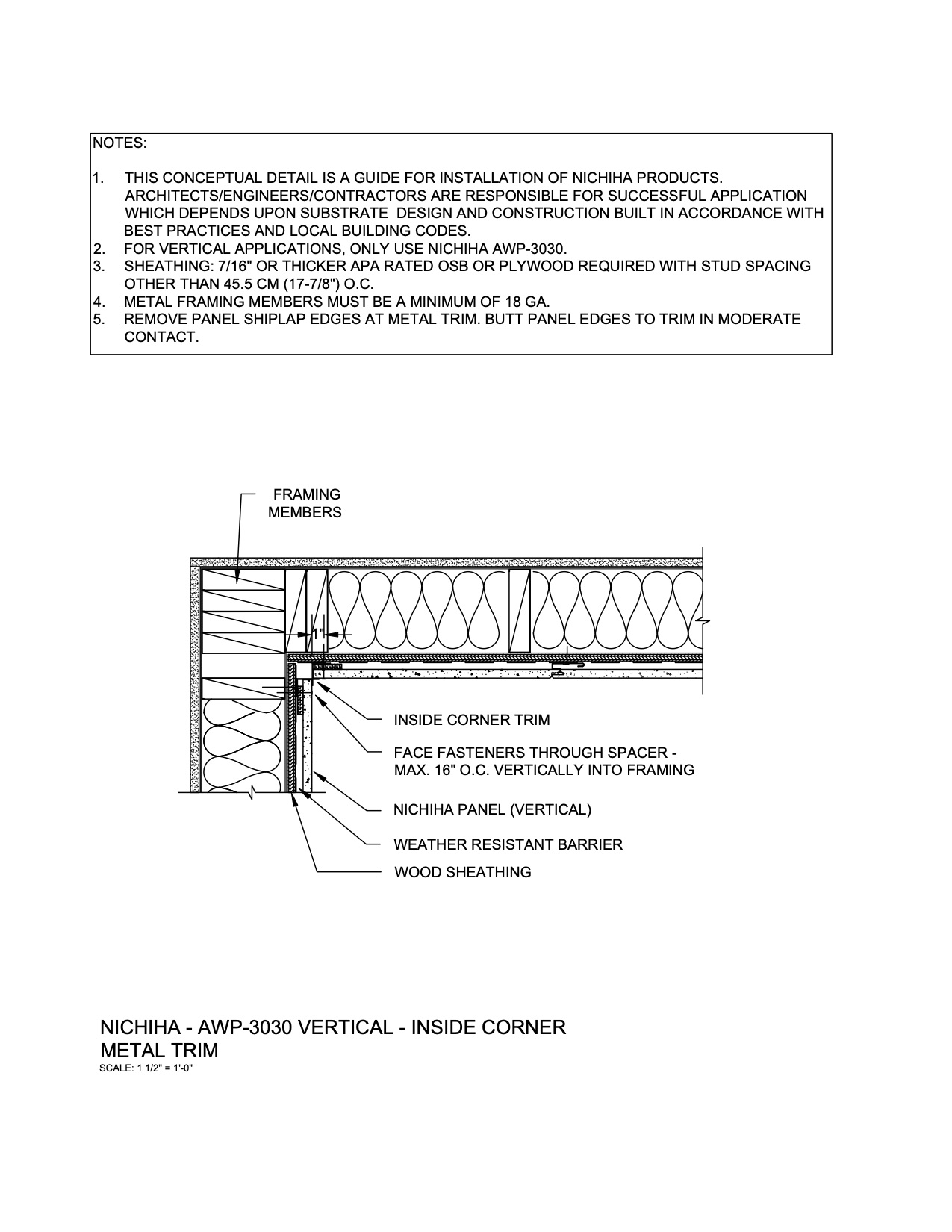

A plan view of vertical Architectural Wall Panel (AWP) over stud framing with an inch or less continuous insulation at an inside corner using Inside Corner metal trim.

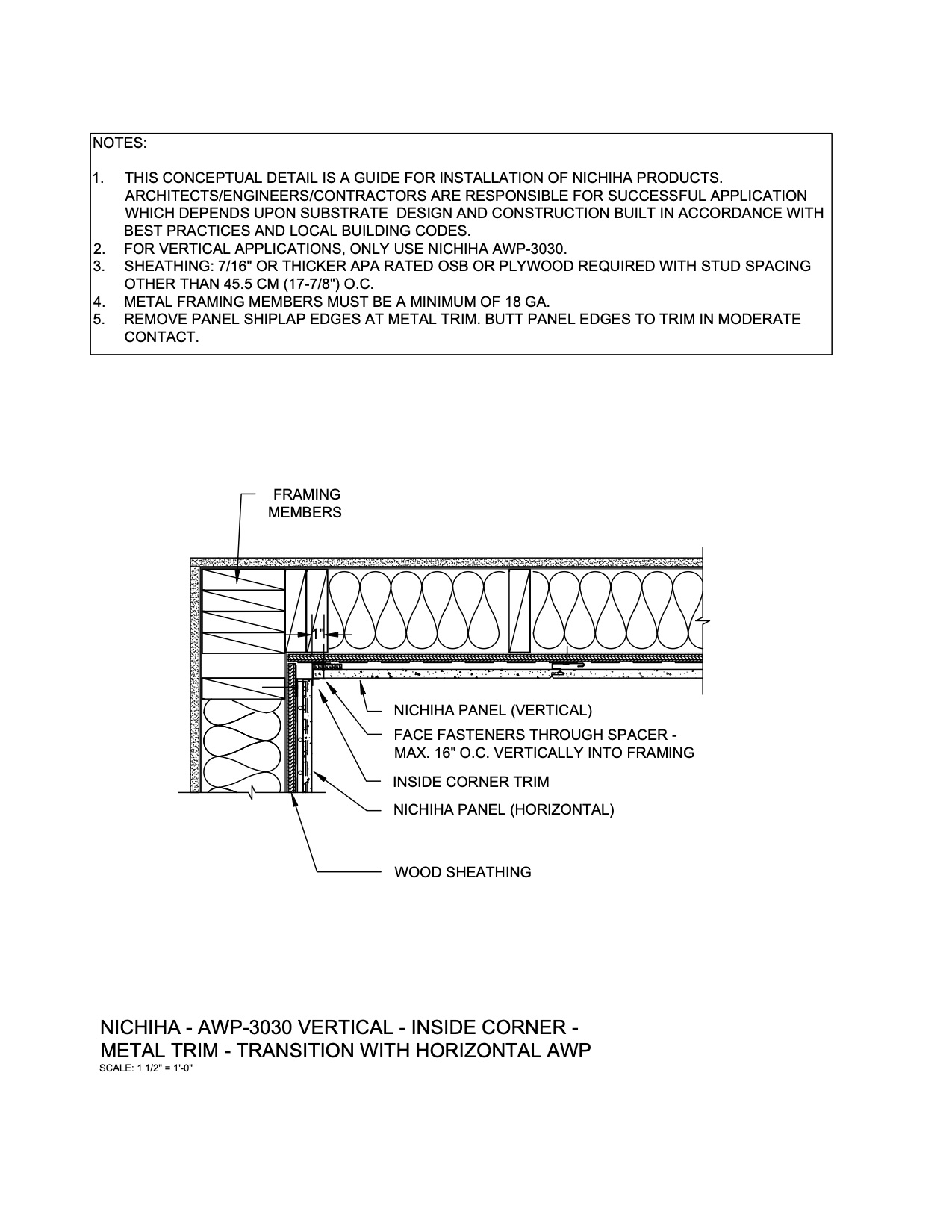

A plan view of vertical Architectural Wall Panel (AWP) and horizontal AWP over stud framing with an inch or less continuous insulation transitioning at an inside corner with Inside Corner metal trim.
