A plan view of vertical Architectural Wall Panel (AWP) and horizontal AWP over CMU with furring transitioning at an inside corner with Inside Corner metal trim.
A plan view of horizontal Architectural Wall Panel (AWP) and KuraStone over stud framing with an inch or less continuous insulation at a standard inside corner transition.
A wall section of horizontal Architectural Wall Panel (AWP) over CMU with furring, Ultimate Clips, and Single Flange Sealant Backer at an inside corner transition with EIFS.
A plan section view of horizontal Architectural Wall Panel (AWP) over stud framing with an inch or less continuous insulation at a flush window jamb with Single Flange Sealant Backer at Trim Board.
A section view of horizontal Architectural Wall Panel (AWP) over stud framing with an inch or less continuous insulation at a window head & sill with Trim Board.

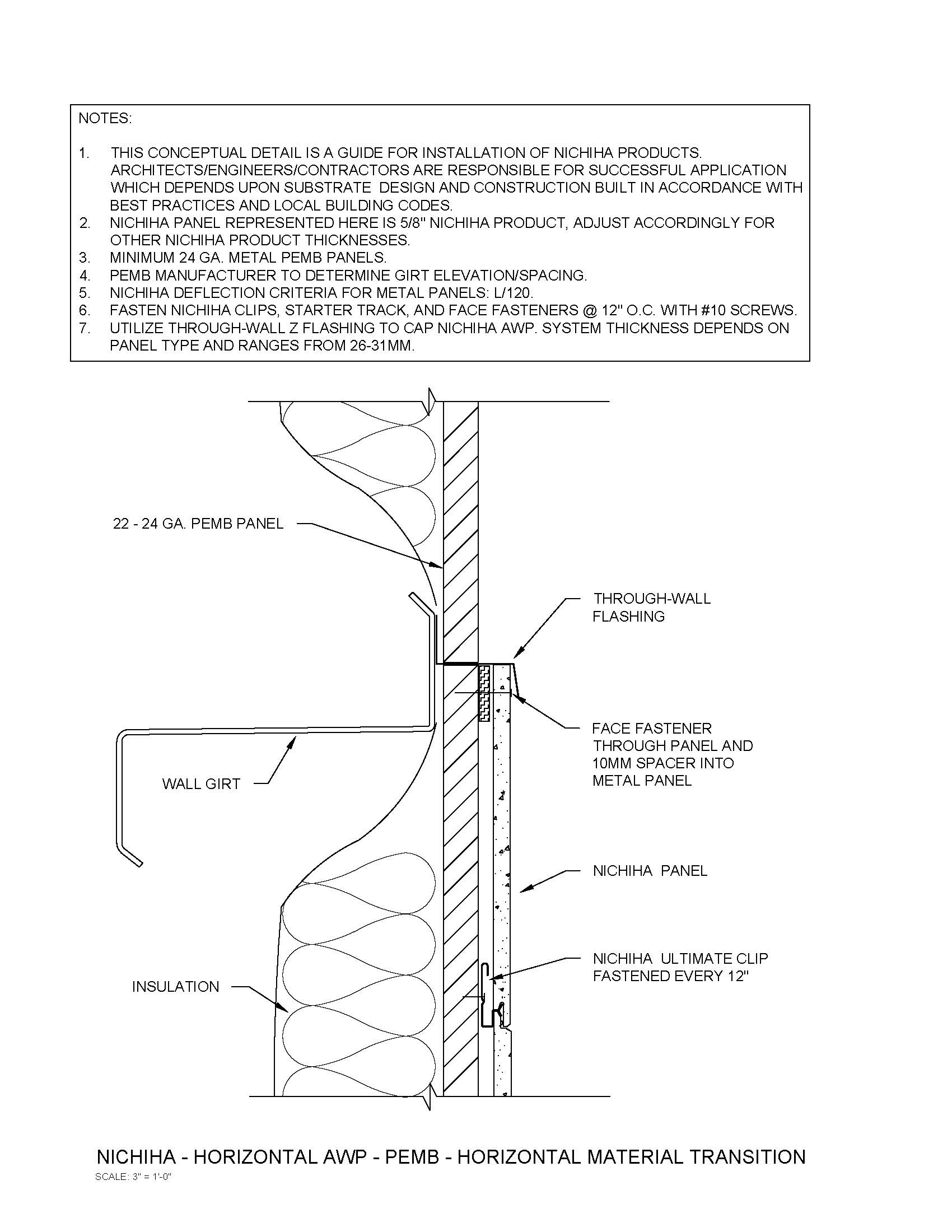

A section view of horizontal Architectural Wall Panel (AWP) over a PEMB structure at a horizontal transition joint to another finish material.
A plan view of horizontal Architectural Wall Panel (AWP) over a PEMB structure at a standard inside corner.
A plan view of horizontal Architectural Wall Panel (AWP) over a PEMB structure at an inside corner with Nichiha Inside Corner Trim.
A plan section view of horizontal Architectural Wall Panel (AWP) over a PEMB structure at a flush window jamb with Single Flange Sealant Backer.
A plan view of horizontal Architectural Wall Panel (AWP) over a PEMB structure at an outside corner using Nichiha Corners.
A plan view of horizontal Architectural Wall Panel (AWP) over a PEMB structure at an outside corner using metal trim channels (Corner Key or Open Outside Corner).

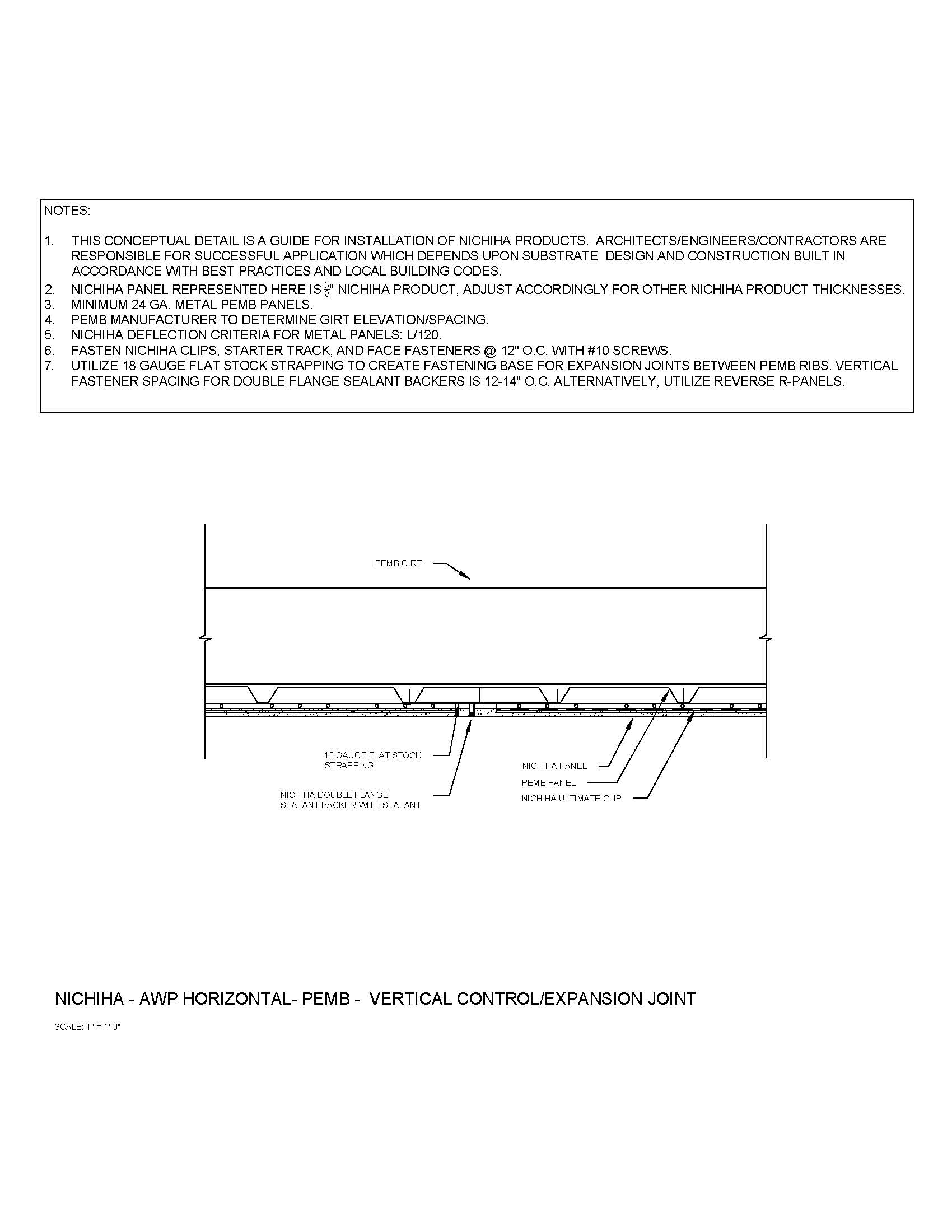

A plan view of horizontal Architectural Wall Panel (AWP) over a PEMB structure at a vertical control/expansion joint.
A section view of horizontal Architectural Wall Panel (AWP) over a PEMB structure at a flush window or door head.
A section view of horizontal Architectural Wall Panel (AWP) over a PEMB structure at a flush window sill.
A section view of vertical Architectural Wall Panel (AWP) over CMU with furring at a window head.
A plan section view of vertical Architectural Wall Panel (AWP) over CMU with furring using Deeper J-Mold trim at a window jamb.
