A plan view of horizontal Architectural Wall Panels (AWP) over stud framing with more than one inch of continuous insulation and furring at a standard inside corner.
A plan view of horizontal Architectural Wall Panels (AWP) over stud framing with greater than one inch of continuous insulation and furring at an inside corner with Inside Corner metal trim.

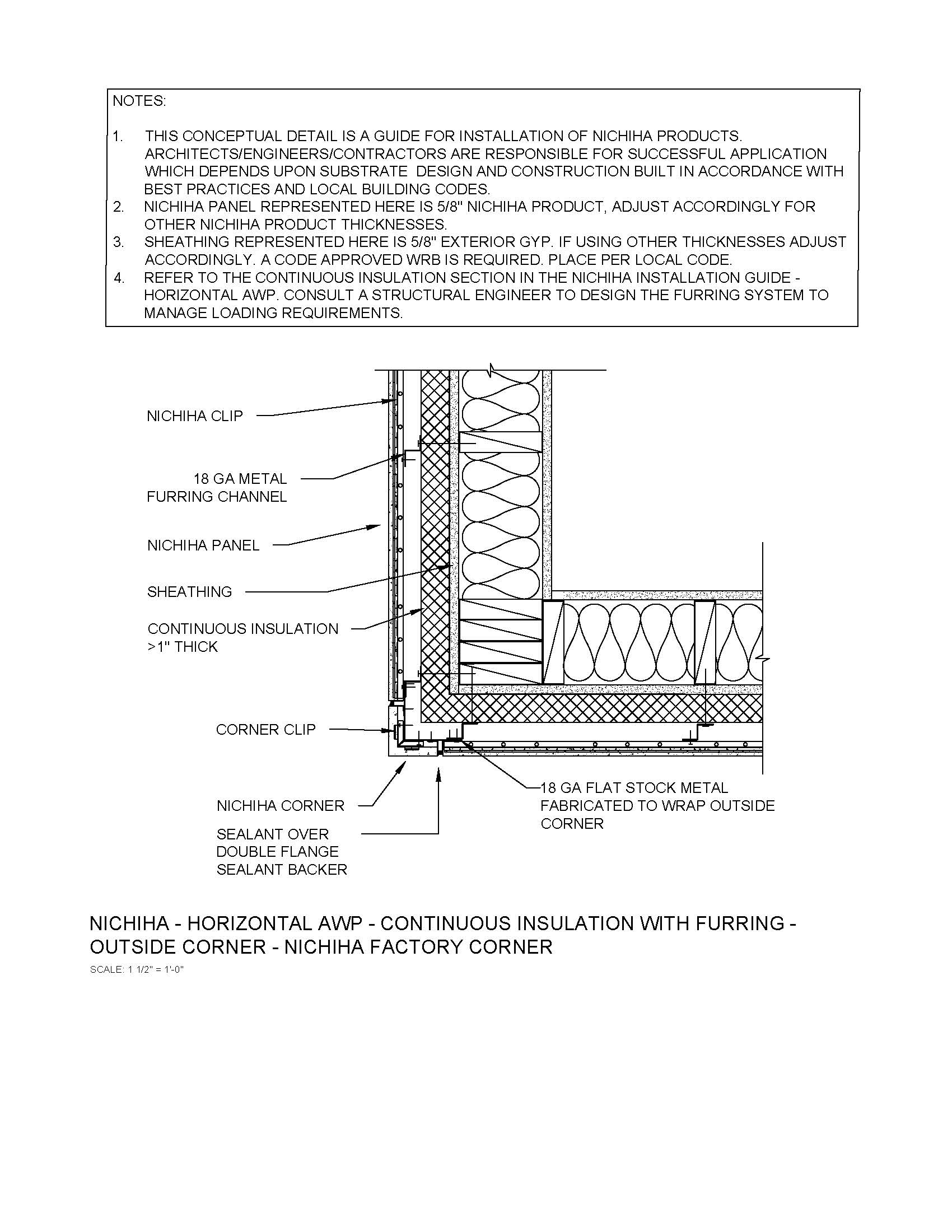

A plan view of horizontal Architectural Wall Panels (AWP) over stud framing with greater than one inch of continuous insulation and furring at an outside corner using Nichiha Corners.
A plan view of horizontal Architectural Wall Panels (AWP) over stud framing with greater than one inch of continuous insulation and furring at an outside corner using Nichiha Corner Key metal trim. *Note: Revit (.rvt) files contain complete sets of details for the same product and assembly configuration and only need to be selected and downloaded once.*

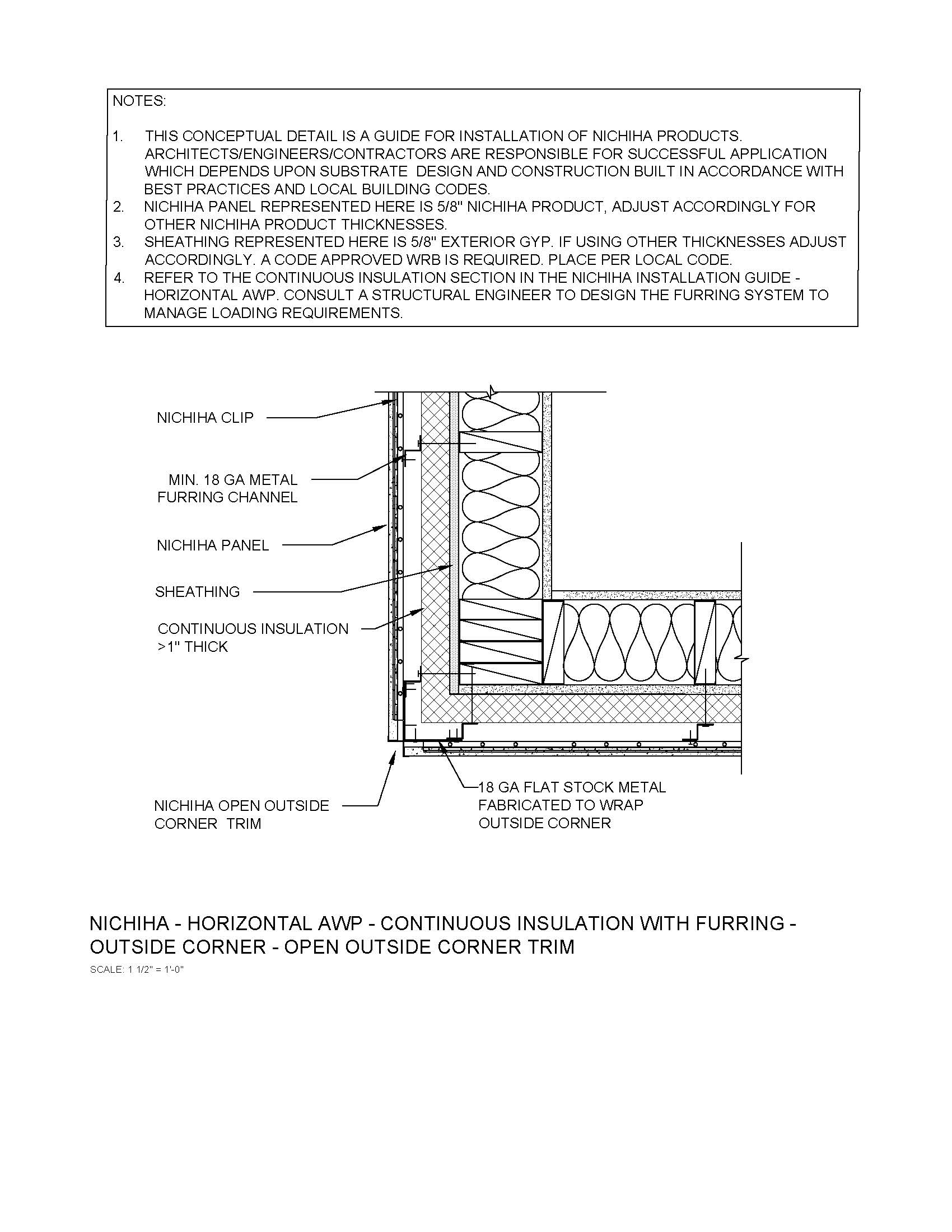

A plan view of horizontal Architectural Wall Panels (AWP) over stud framing with greater than one inch of continuous insulation and furring at an outside corner using Nichiha Open Outside Corner metal trim.

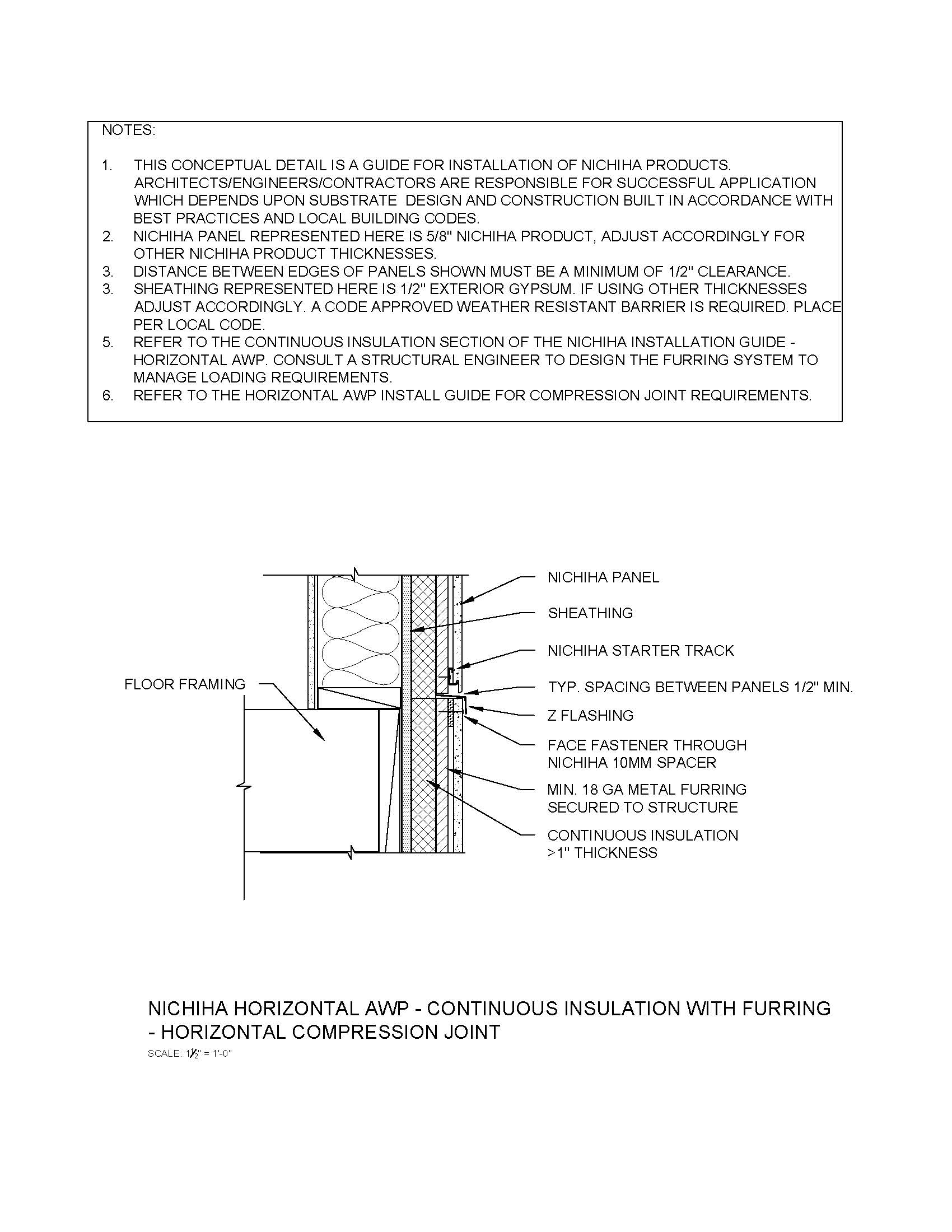

A section view of horizontal Architectural Wall Panel (AWP) over stud framing with greater than one inch of continuous insulation and furring at a horizontal/compression joint occurring at a floor line.

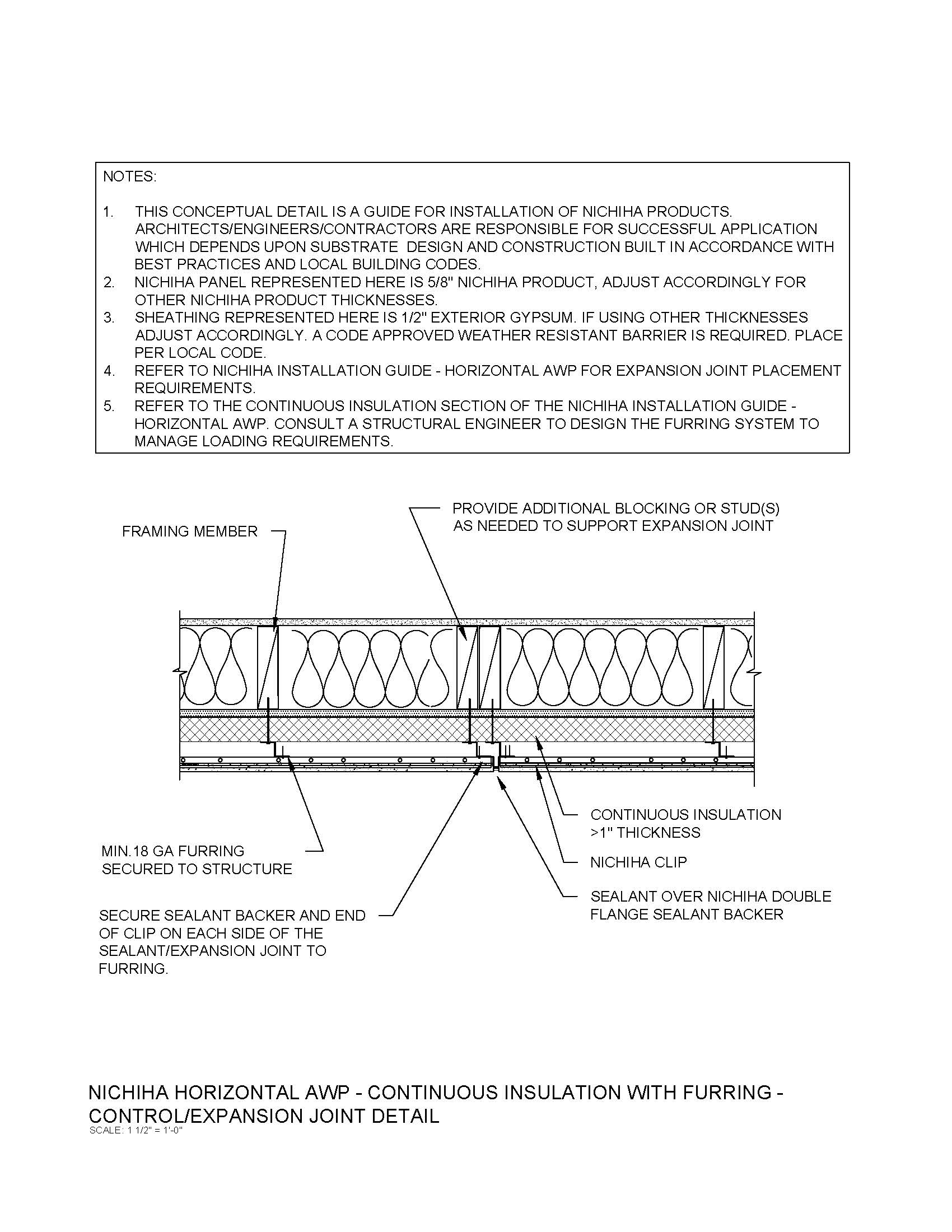

A plan view of horizontal Architectural Wall Panels (AWP) over stud framing with greater than one inch of continuous insulation and furring at a vertical control/expansion joint.

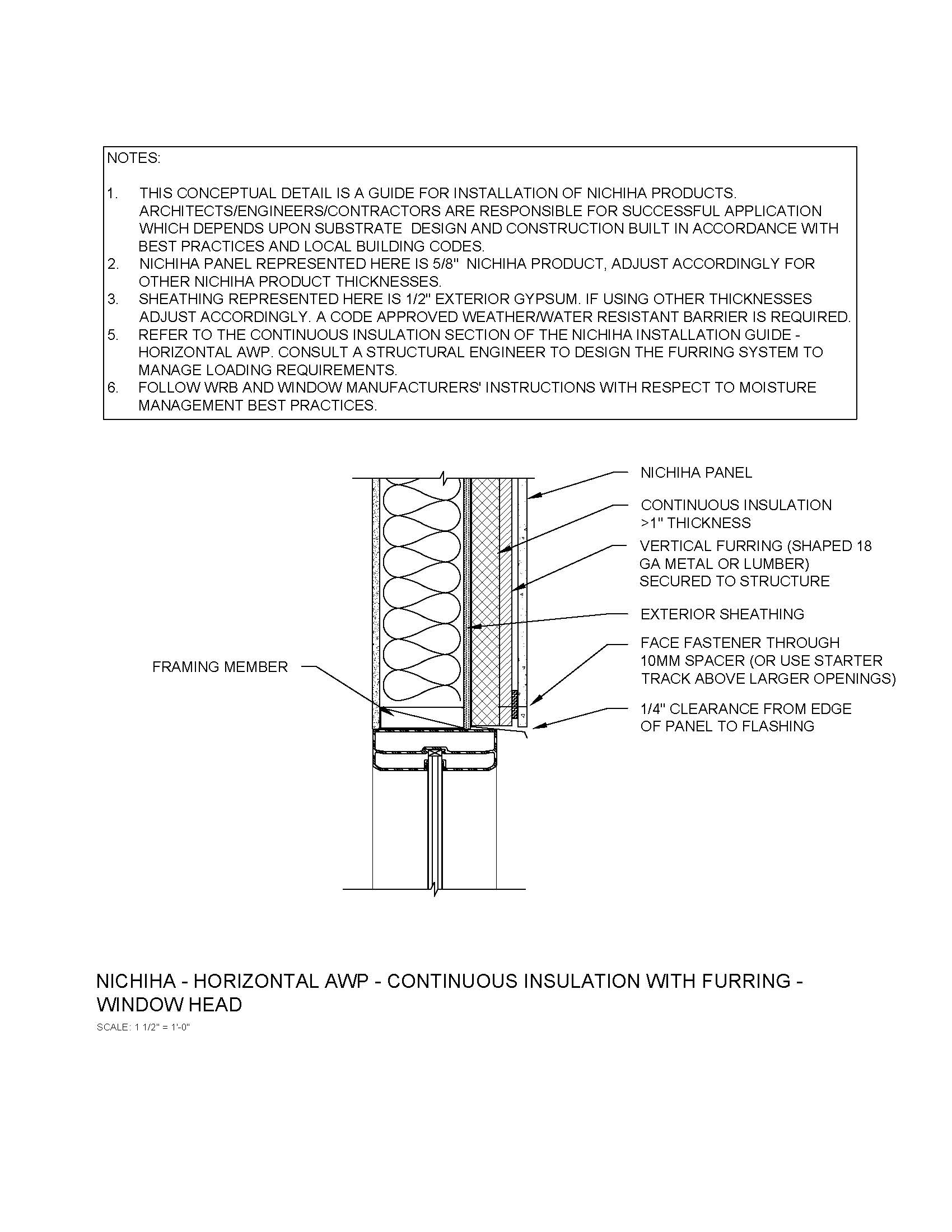

A section view of horizontal Architectural Wall Panels (AWP) over stud framing with greater than one inch of continuous insulation and furring at a window head.
A plan section view of horizontal Architectural Wall Panels (AWP) over stud framing with greater than one inch of continuous insulation and furring at a window jamb with break metal.
A section view of horizontal Architectural Wall Panels (AWP) over stud framing with greater than one inch of continuous insulation and furring at a window sill.
A plan view of horizontal Architectural Wall Panels (AWP) over stud framing with greater than one inch of continuous insulation and furring at a vertical control/expansion joint.

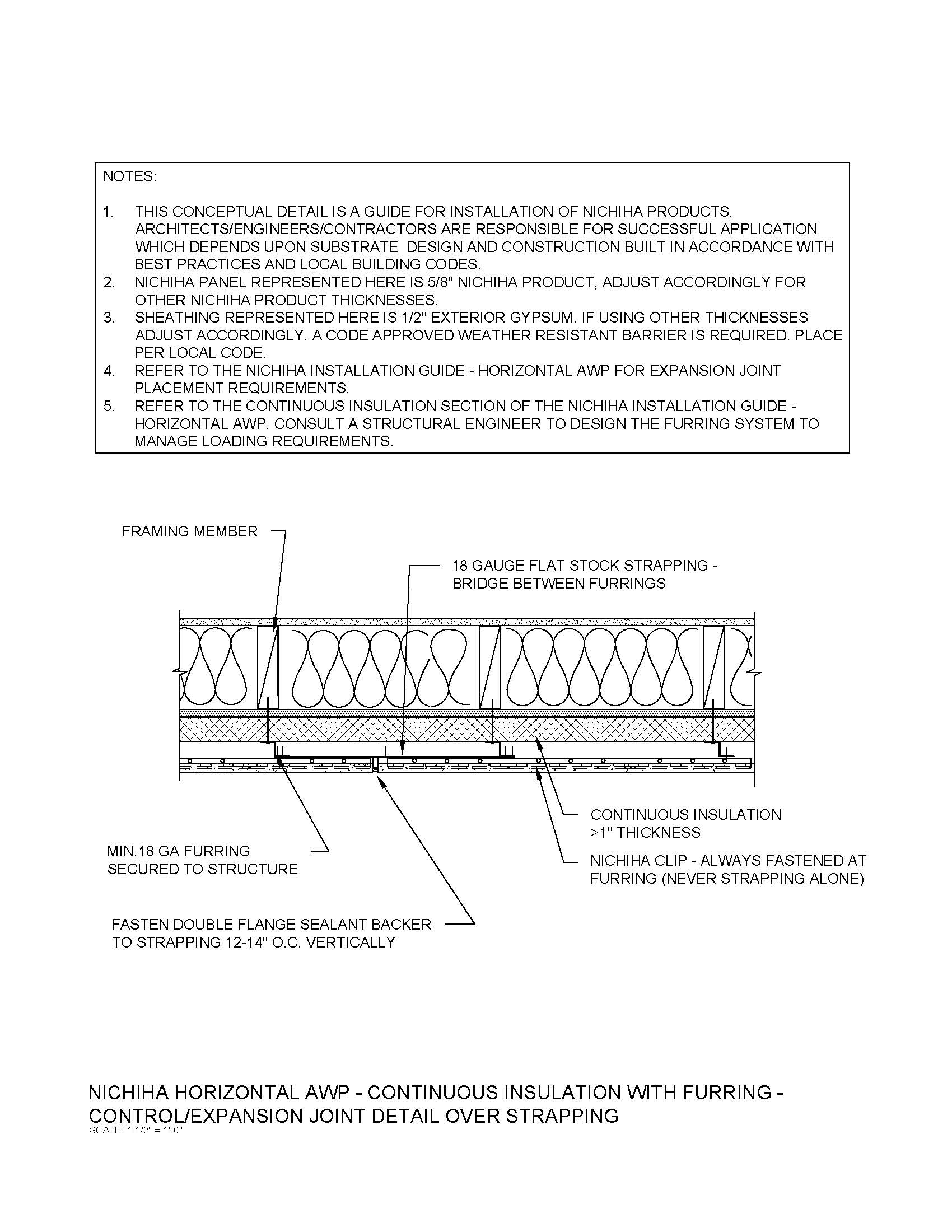

A plan view of horizontal Architectural Wall Panels (AWP) over stud framing with greater than one inch of continuous insulation, furring, and horizontal strapping at a vertical control/expansion joint.
A plan section view of horizontal Architectural Wall Panels (AWP) over stud framing with greater than one inch of continuous insulation and furring on a bump out return terminating to a deeply recessed window jamb.
A section view of horizontal Architectural Wall Panels (AWP) over stud framing with less than one inch of continuous insulation and a generic sign or other attachment on the panels.
A plan section view of horizontal Architectural Wall Panel (AWP) over stud framing with an inch or less continuous insulation at a recessed window jamb with a factory outside panel Corner.

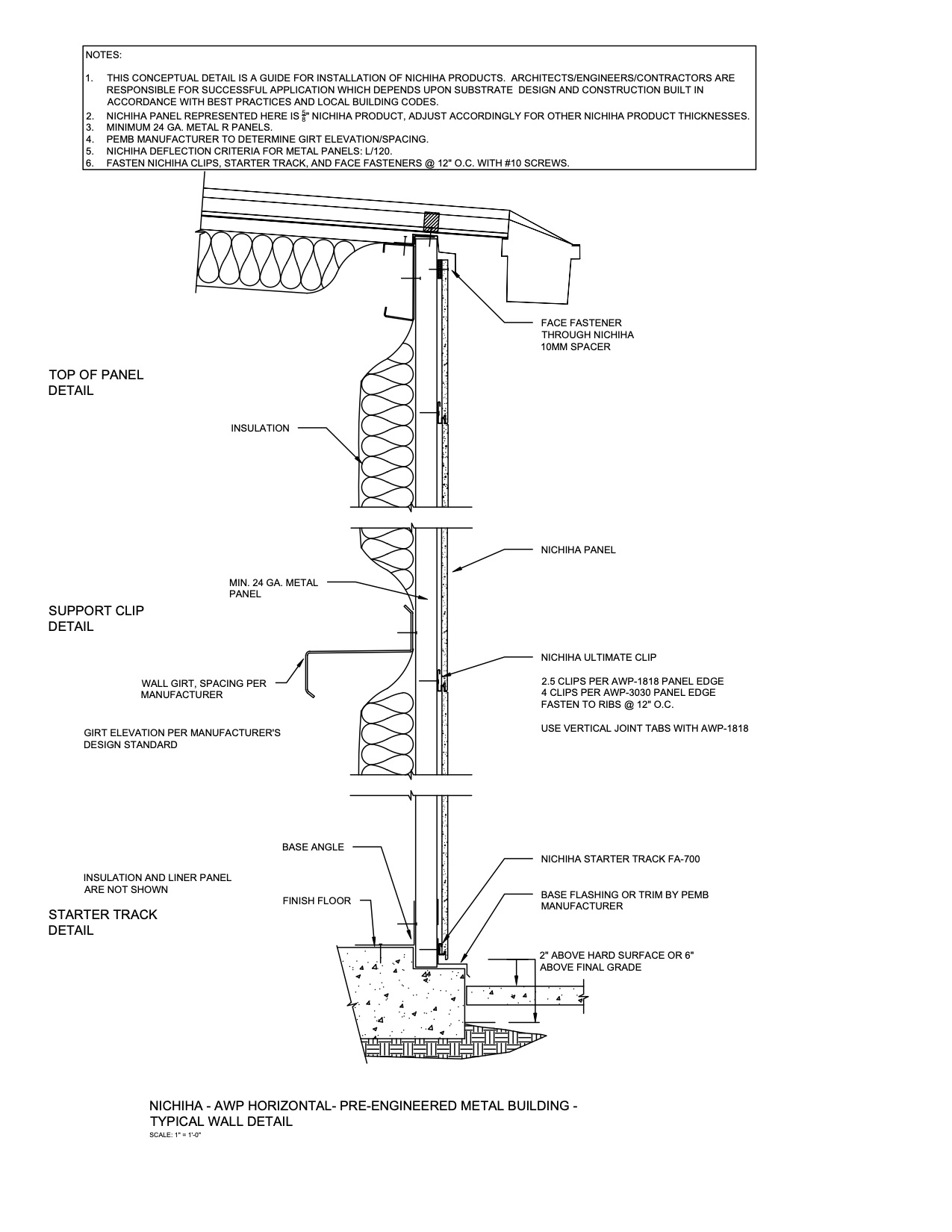

A full wall section of horizontal Architectural Wall Panel (AWP) over a PEMB with Starter Track, Ultimate Clips.
